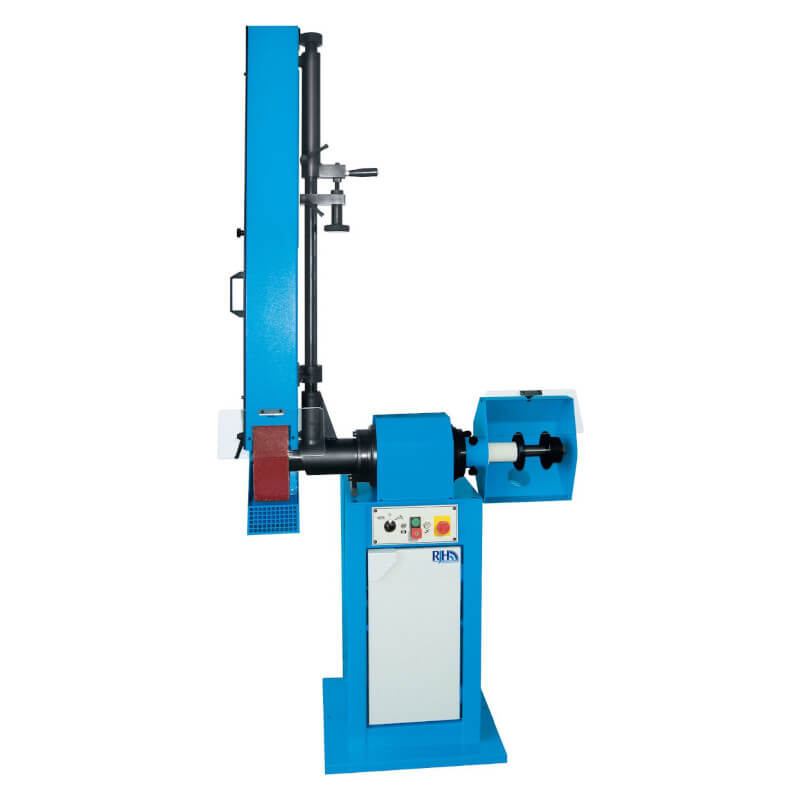

Super Gazelle Belt Grinder/Linisher & Polisher
A robust double-ended belt grinder/linisher or belt grinder/polisher suitable for continuous production. A range of models is available. Sourced from Aceti.
Standard features include:
- Single through spindle
- Quick release telescopic backstand arm, adjustable for horizontal or vertical positions.
- Adjustable guarding with mechanical guard lock

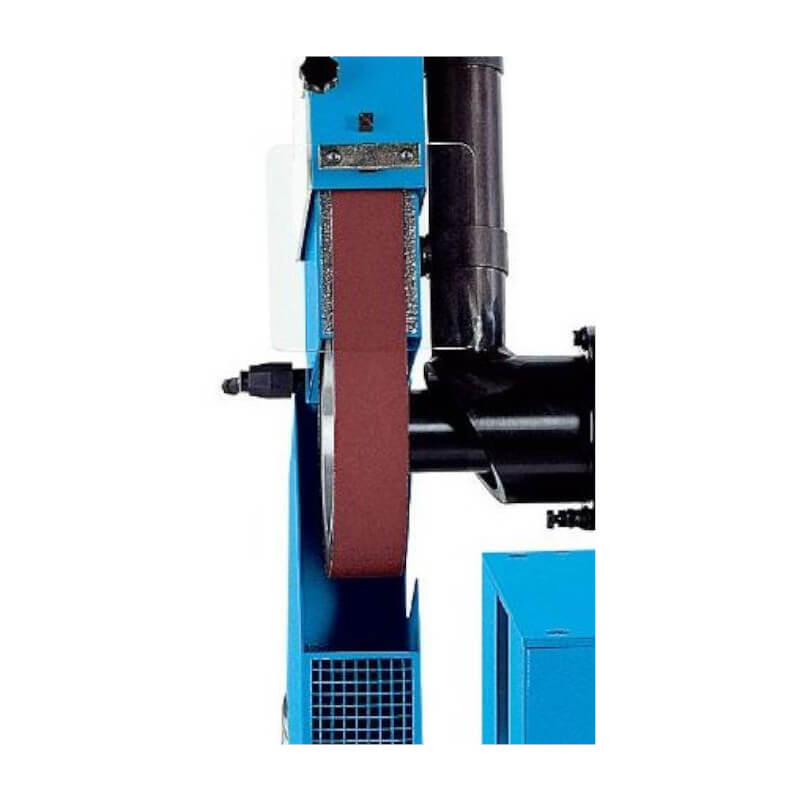

- Belt tensioning via external screw adjustment

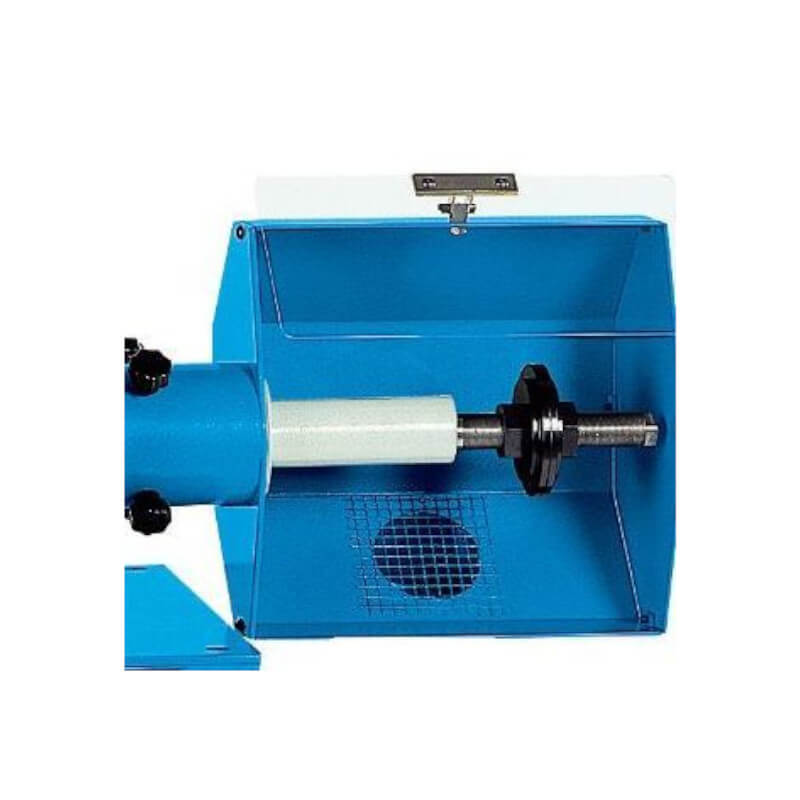

- Parallel mop adaptor on polisher end
- Motor braking system
- Large adjustable mop guard
- Dust hopper
- Eye shields.
Additional information
Electrical Supply
400/3/50
Motor
From 1.8kw up to 4.4kw
Motor Speed
1400rpm and 2800rpm
Belt Size
50mm wide and up to 3000mm long
Belt Speed
15m/sec and 30m/sec or 18m/sec and 36m/sec
Optional Extras
- Foot stop
- Light
- Variable speed
- Dust hopper for mop end
- 75mm or 100mm wide contact wheels
- Dust extraction
