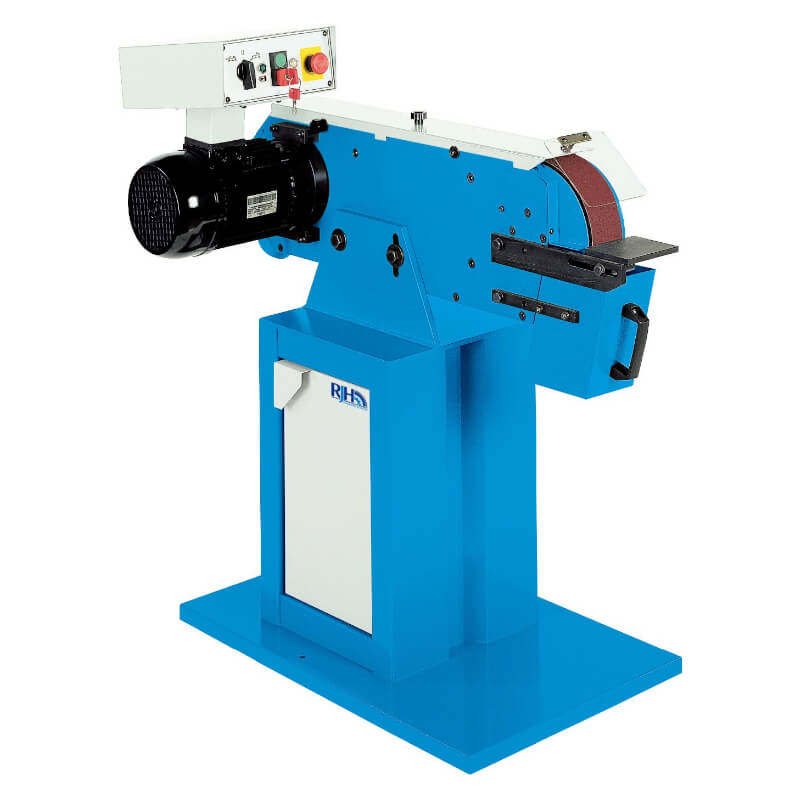

Jaguar Belt Grinder/Linisher
A robust single-ended belt grinder/linisher suitable for continuous production in a wide range of industrial applications. A range of models is available. Sourced from Aceti.
Standard features include:
- Horizontal platen with adjustable working height
- Adjustable guarding with mechanical guard lock
- Belt tensioning via external screw adjustment
- Rear belt tracking adjuster
- Motor braking system
- Eye shield.
Additional information
Electrical Supply
400/3/50
Motor
From 3.0kw up to 5.2kw
Motor Speed
2800rpm or 1400rpm and 2800rpm
Belt Size
Up to 200mm wide x 2500mm long
Belt Speed
30m/sec or 18m/sec and 36m/sec
Optional Extras
- Foot stop
- Dust extraction
